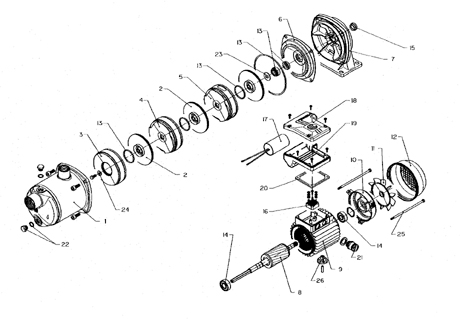

1 Pump body
2 Impeller
3 First stage box
4 Diffuser
5 End diffuser
6 Seal holding disk
7 Motor/pump support
8 Shaft+rotor+bearings+hex shaft
9 Motor casing+wound stator
10 Motor cover
11 Fan
12 Fan cover
13 Mechanical seal+O-ring kit
14 Pump-side bearing
14 Fan-side bearing
15 Splash guard
16 Terminal board
17 Capacitor
18 Terminal board cover
19 Capacitor box
20 Terminal board cover gasket
21 Cable clamp
22 Fill/drain plug
23 Seal shoulder washer
24 Impeller stop washer
25 Tie rods
26 Support foot
|
HM/HMS系列易损件、备件清单 |
||
|
序号 |
名 称 |
建议购置最低备件数 |
|
1 |
机械密封组件 |
1副 |
|
2 |
外壳O形圈 |
1只 |
|
3 |
叶轮环口O形圈 |
水泵配置叶轮数量的100％ |
|
4 |
电机风扇侧轴承 |
1只 |
|
5 |
电机风扇侧密封圈 |
1～2套 |
|
6 |
叶轮 |
水泵配置叶轮数量的30％ |
