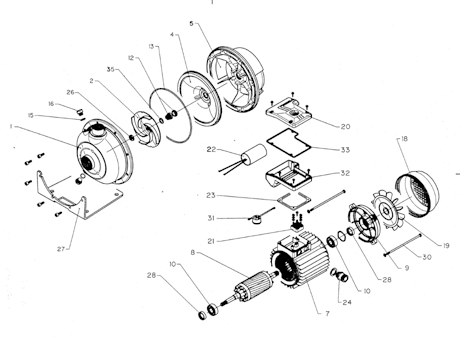

1 Pump body
2 Impeller
4 Seal holding disk
5 Adaptor
7 Motor casing with wound stator
8 Shaft with rotor
9 Motor cover on fan side
10 Bearings
12 Mechanical seal
13 Gasket
15 Gasket
16 Fill/drain plug
18 Fan cover
19 Fan
20 Terminal board cover
21 Terminal board
22 Capacitor
23 Terminal board box gasket
24 Cable clamp
26 Impeller stop nut
27 Support foot
28 Seal ring
30 Tie rod
31 Thermal protector
32 Box for single-phase terminal board
33 Single-phase terminal board box gasket
| CO/COM系列易损件\备件清单 | ||
| 序号 | 名 称 | 建议购置最低备件数 |
| 1 | 机械密封组件 | 1副 |
| 2 | 外壳O形圈 | 1只 |
| 3 | 叶轮环口O形圈 | 1只 |
| 4 | 电机轴承 | 1套 |
| 5 | 电机轴承防护密封圈 | 1套 |
